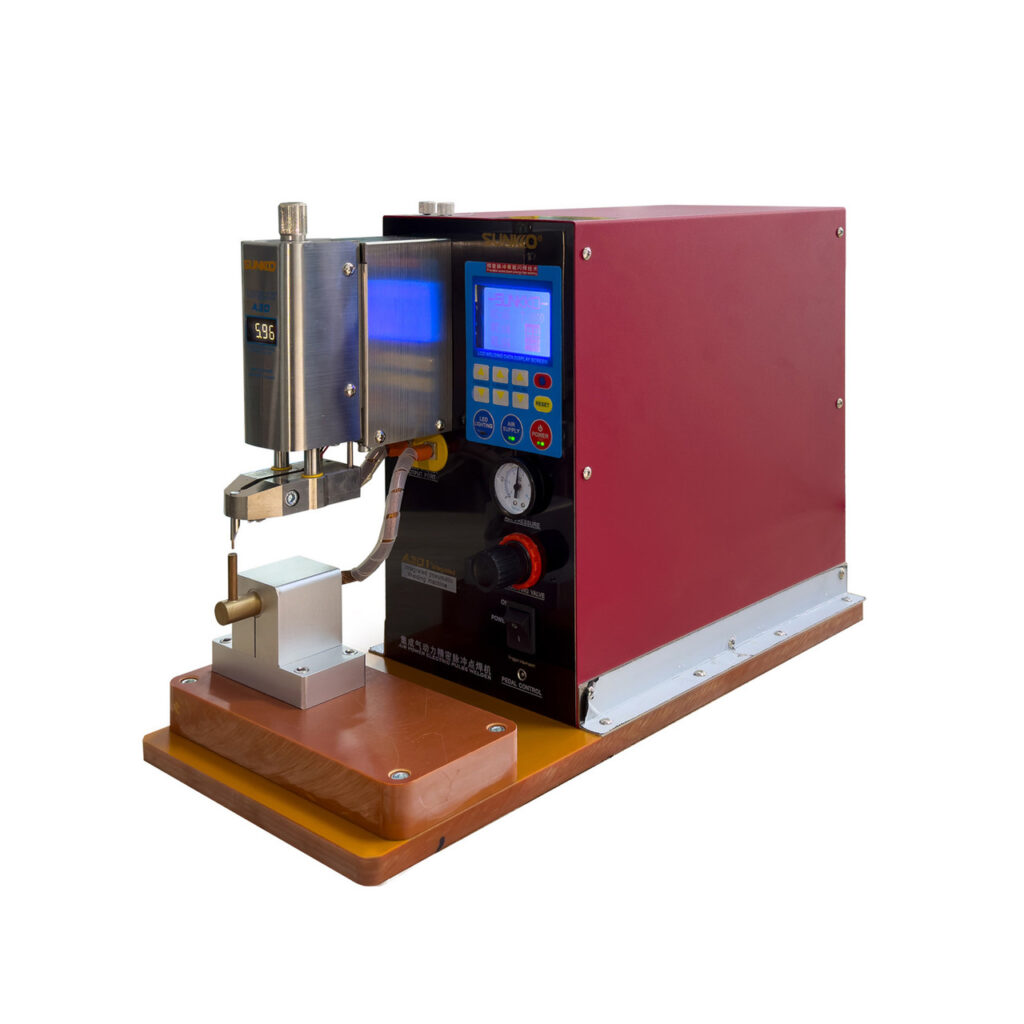

Sunkko A301+

The SUNKKO A301+ is a pneumatic spot welding machine used for welding lithium battery cells and nickel strips with high precision. It provides strong and stable welding performance, making it suitable for battery pack assembly and industrial applications.

Sunkko A301+

PNEUMATIC WELDING MACHINES SERIES
Precision Pneumatic Pulse Butt Welding Machine

The SUNKKO A301+ is a pneumatic spot welding machine used for welding lithium battery cells and nickel strips with high precision. It provides strong and stable welding performance, making it suitable for battery pack assembly and industrial applications.

Request Demo
Download Datasheet

Key Specifications

Model name
A301+
Power supply
AC 110/220V
Output voltage
DC 6V
Output power
6KW (Max.)

Technical Specifications

welding current 2000A
Operation pressure 0.35-0.55MPa
Spot welding thickness 0.1~0.2mm(pure nickel) 0.1~0.3mm(nickel plated)
Max. electrode pressure 1.5KG (single)
Air source input power 200W
Max. electrode stroke 24mm
Max. air source pressure 0.6MPa
Size 505x190x340mm

Key Features

  • Microcontroller-controlled with single, double, and multi-pulse welding modes.
  • Detachable standardized pneumatic welding head for easy installation and transport.
  • Laser alignment and welding needle light for precise, efficient welding.
  • Ergonomic barometer and air pressure knob for easy monitoring and adjustment.
  • Independent speed control for resetting and pressing pneumatic welding heads.

Applications

  • Polymer battery
  • Electronic parts leads
  • Copper mesh
  • Stainless steel
  • Stainless steel parts

Downloads & Documentation

User Manual
User Manual
2.20 KB
Technical Datasheet
Technical Datasheet
2.20 KB
CE Certificate
CE Certificate
2.20 KB
Firmware v3.1
Firmware v3.1
2.20 KB
